ENGINEERING THE FUTURE OF RF AND EMC VALIDATION

Aracion designs, manufactures, integrates and validates turnkey test infrastructure: EMC chambers, OTA and antenna ranges, shielded and secure facilities, absorbers and instrumentation. We take responsibility for how the finished facility performs.

Speak with Engineers

ALVEX CATR · Bengaluru

Quiet zone 1.5 m

1.49 GHz to 24 GHz

5G FR1 and FR3

ISO/IEC 17025:2017

PRODUCT LINES

ADVANCED RF AND EMC INFRASTRUCTURE

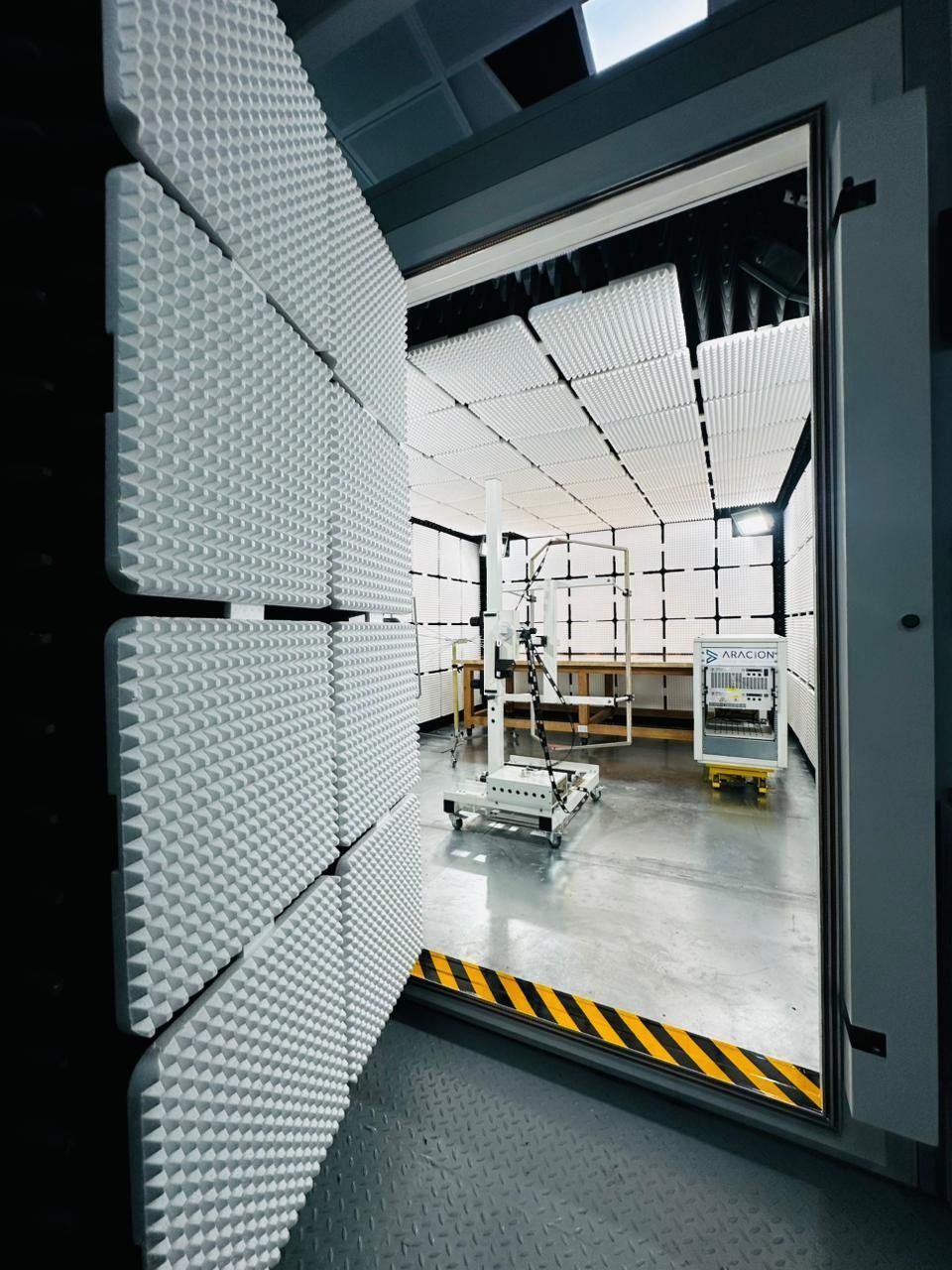

Turnkey Laboratory Setup

Complete EMC, RF, microwave, near-field, far-field, CATR and OTA laboratories engineered around defined performance targets.

EMC compliance chambers
Near-field and far-field ranges
CATR and OTA environments
Automation, commissioning, acceptance testing

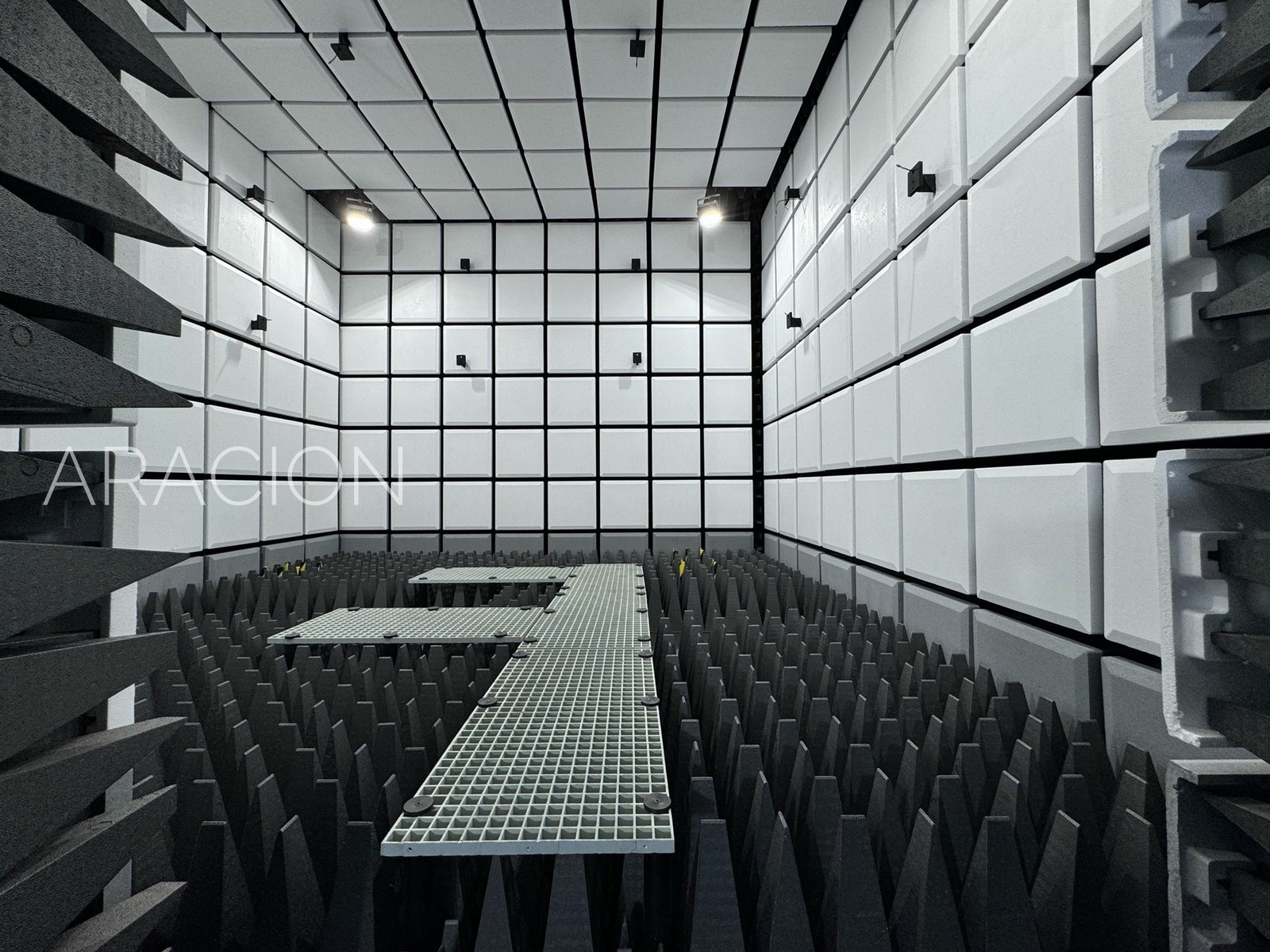

EMI & EMC Anechoic Chambers

Semi-anechoic and fully anechoic chambers for radiated and conducted emissions and immunity.

1 m, 3 m, 5 m and 10 m chambers
MIL-STD-461, CISPR and IEC aligned
NSA, NSIL and VSVWR validation
Turntables, masts, filters, penetration panels

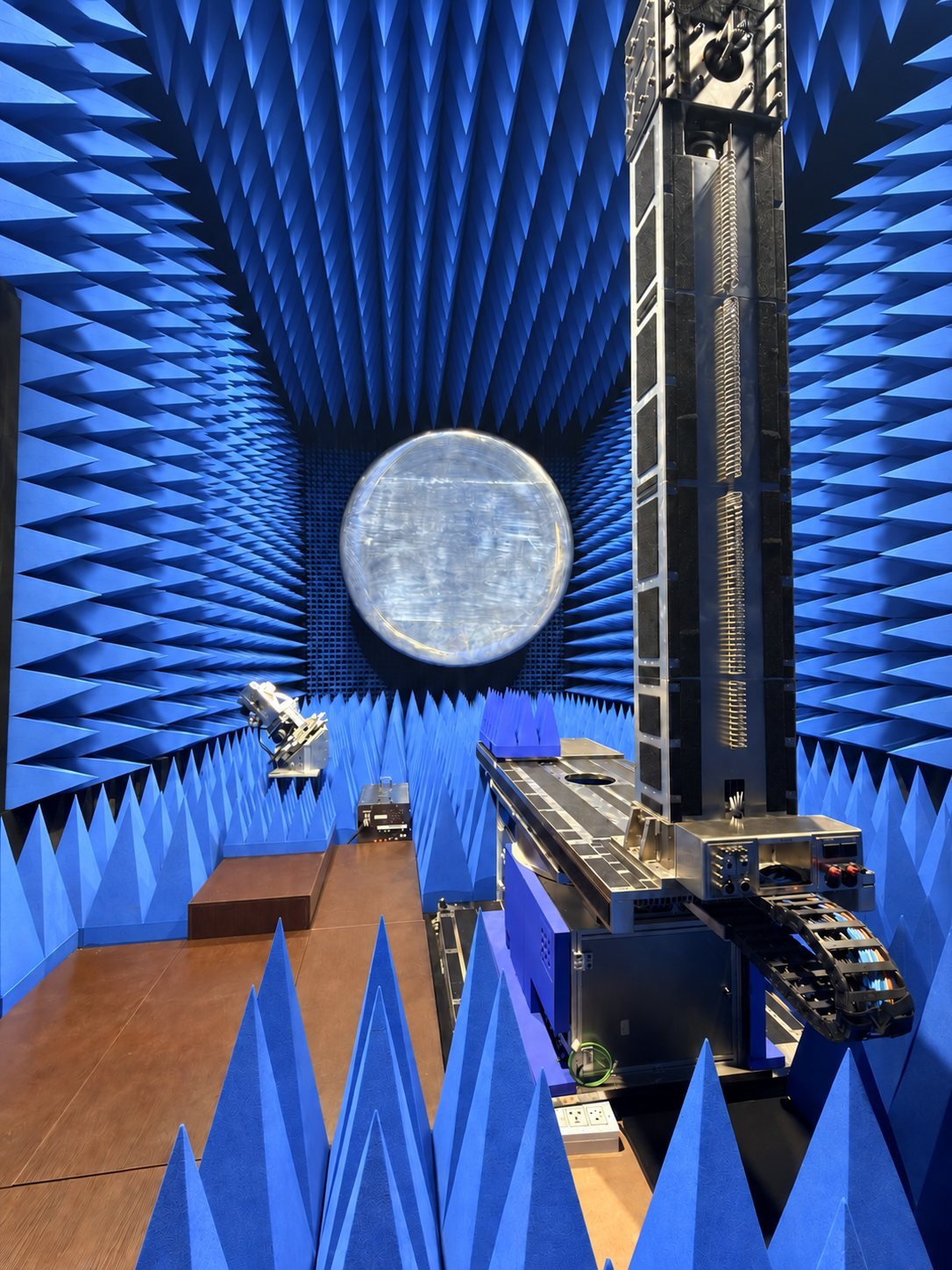

Microwave, Antenna & OTA Chambers

RF environments for 5G OTA, satellite, radar, phased array and antenna measurement.

CATR with offset reflector
Planar, cylindrical and spherical near-field
Far-field ranges and reverberation chambers
FR1, FR2 and FR3 builds

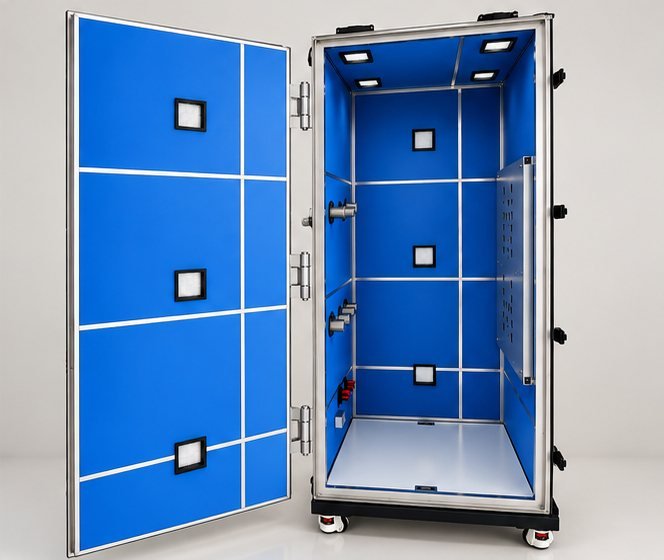

RF Shielding Solutions

Shielded boxes, rooms, Faraday cages and secure RF enclosures for test, debug and protected environments.

Boxes individually tested 1 to 40 GHz
SMA, N, BNC, 2.92 mm, USB, Ethernet, HDMI
AC and DC filters
Waveguide-below-cutoff ventilation

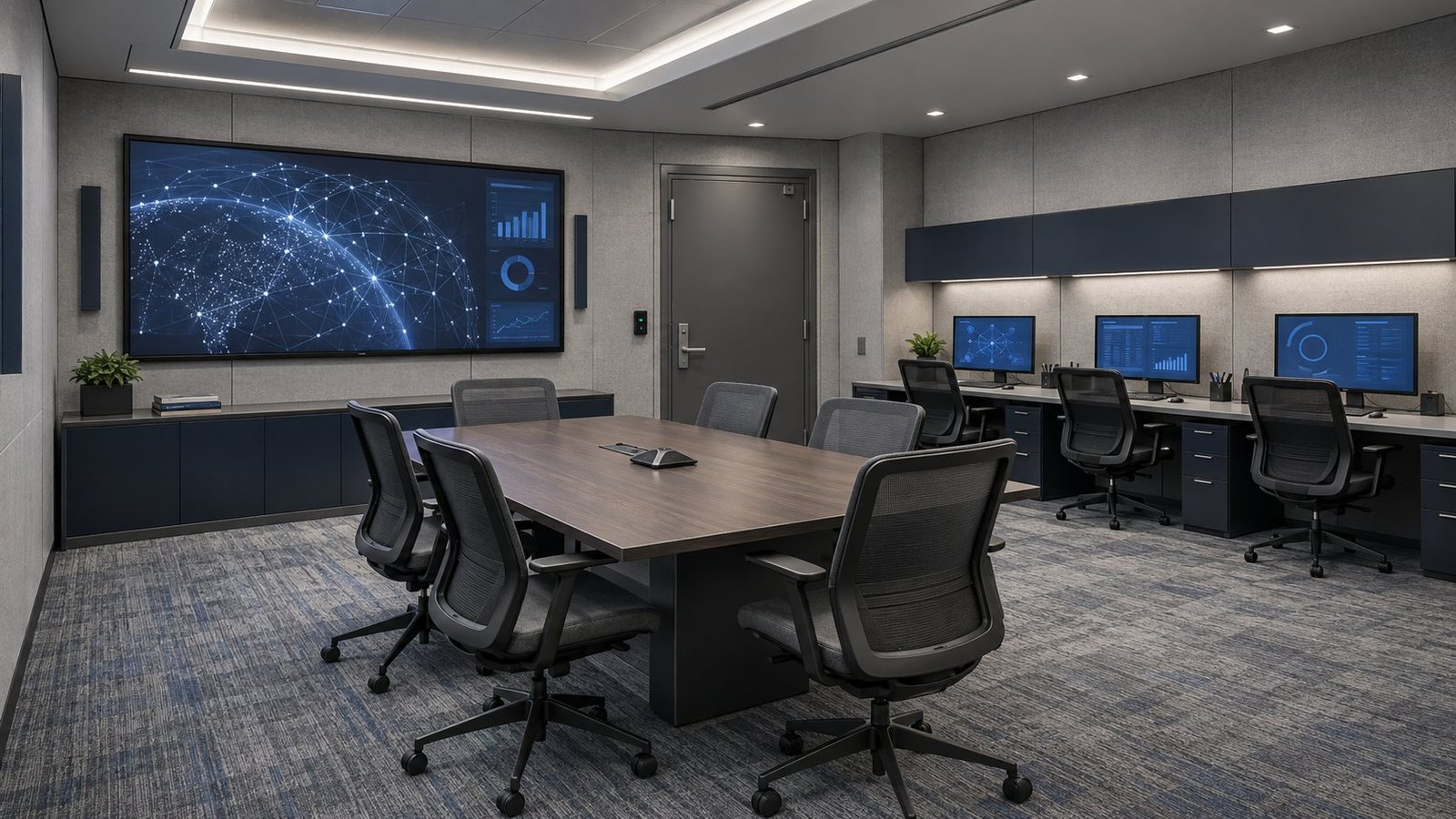

SCIF and Secure Facilities

RF shielding, acoustic treatment, power filtering, access control and active speech privacy in one design.

SCIF design and integration
Secure boardrooms
RF and acoustic attenuation validation
HARP Speech Protector integration

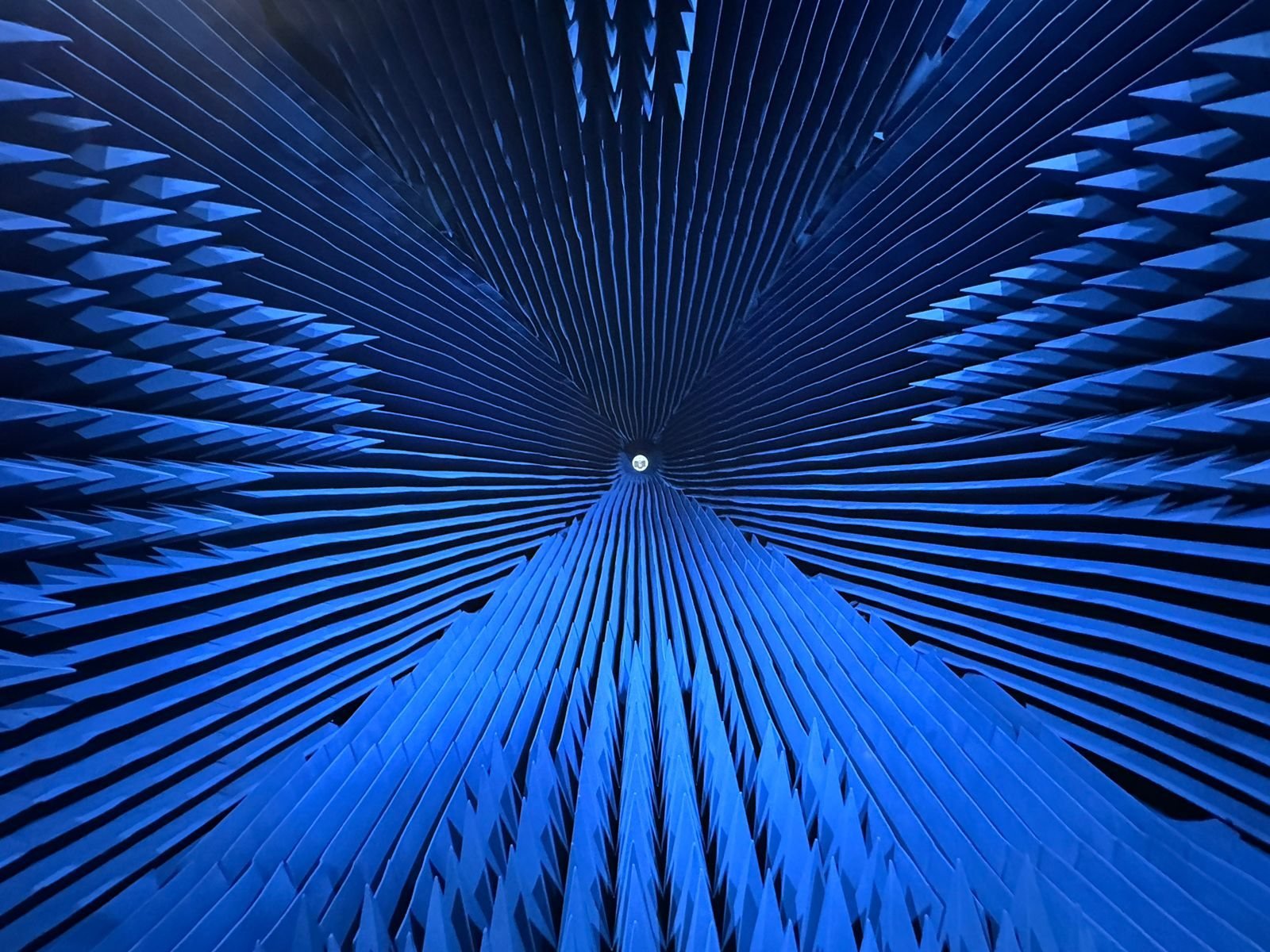

EMC and Microwave Absorbers

Broadband absorbers for anechoic chambers, OTA and CATR facilities, radar environments and shielded boxes.

30 MHz to 110 GHz coverage
Pyramidal, wedge, hybrid and flat
High-power options
Traceable performance data

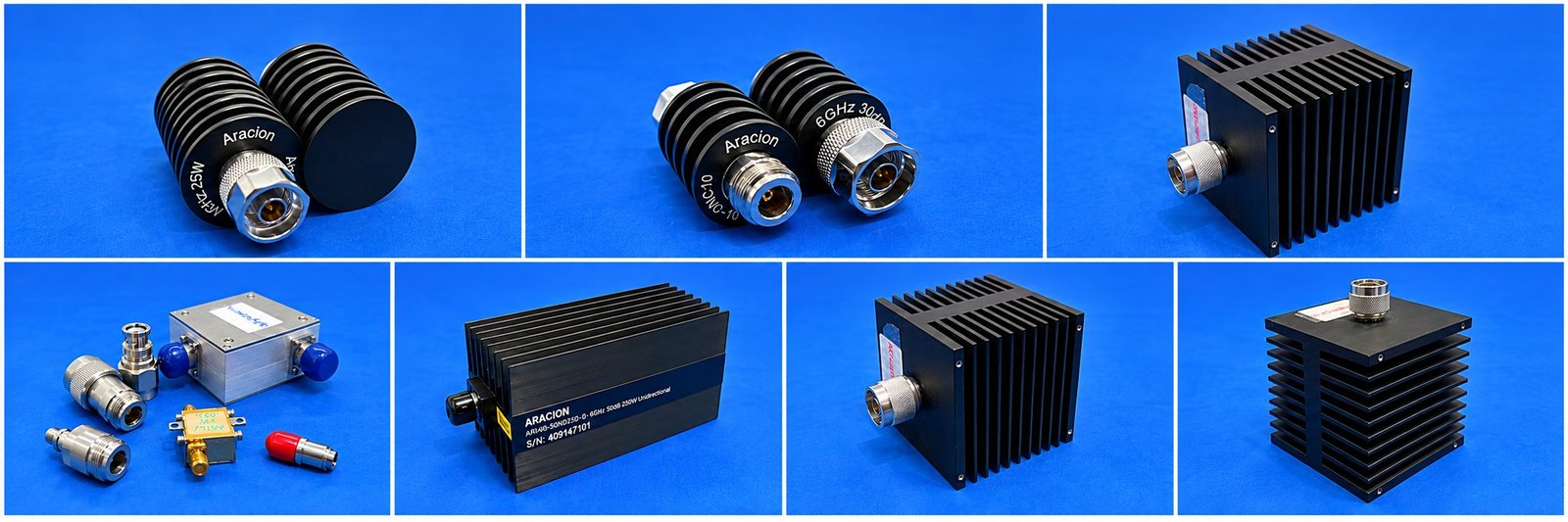

RF Accessories & Instrumentation

Amplifiers, antennas, LISNs, CDNs, filters, masts, turntables and instruments for complete measurement chains.

DC to 110 GHz accessories
Power amplifiers for EMC and RF
Antennas, masts, turntables, positioners
Receivers, VNAs, generators, analysers

FEATURED CAPABILITY

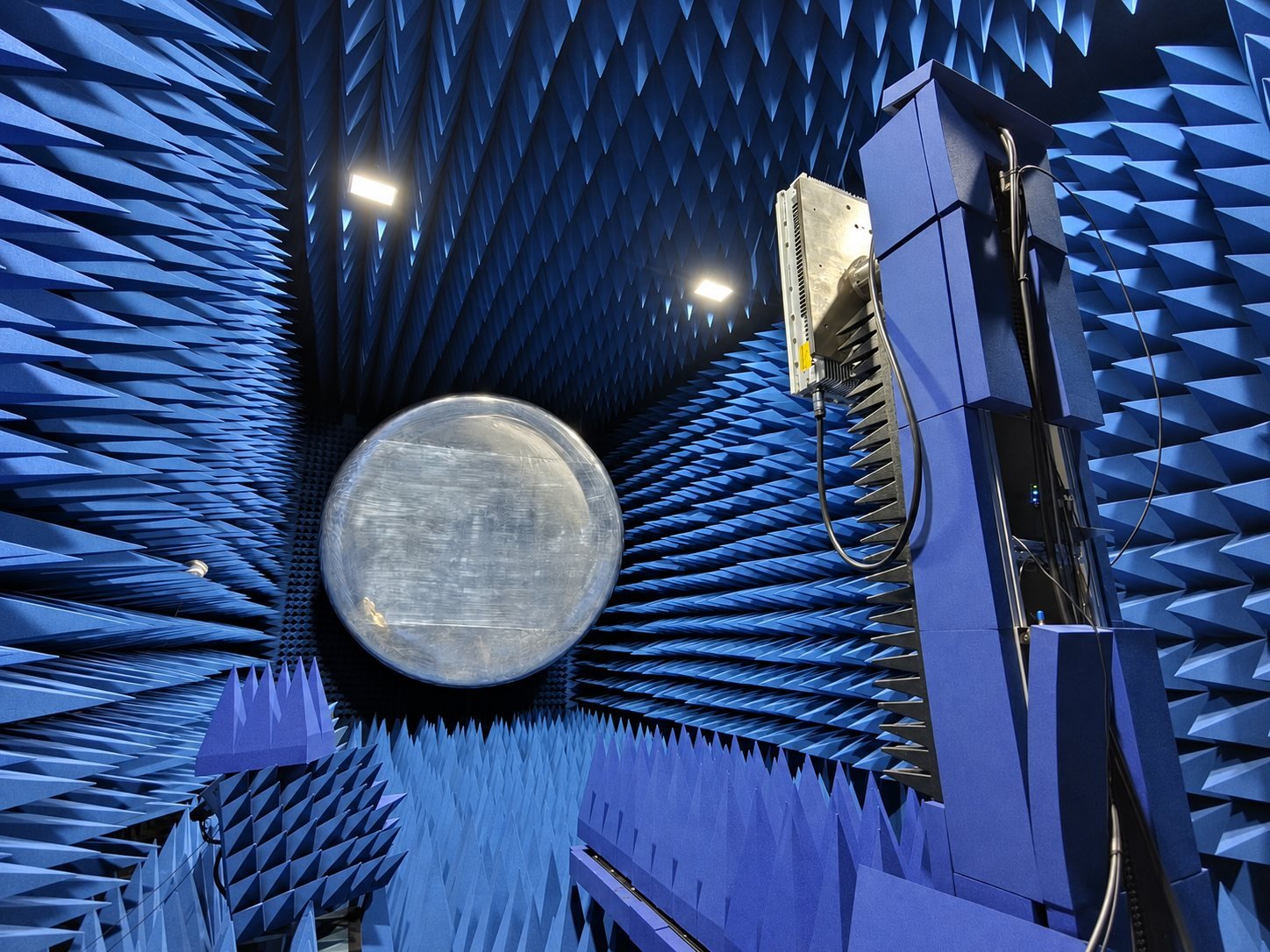

A compact antenna test range we run every day

Aracion owns and operates the chamber it sells. Our Bengaluru CATR supports TRP, EIRP, EIS, beamforming, MSR radio testing and hybrid active antenna system validation, and runs ISO/IEC 17025-accredited radiated conformance for 5G NR base stations in FR1 and FR3.

QUIET ZONE 1.5m

FREQUENCY 1.49 to 24 GHz

REFLECTOR 3.3 m offset

POSITIONER Up to 50 kg

VALIDATED TO 3GPP TS 38.141-2

APPLICATIONS FR1 · FR3 · AAS

Explore the CATR Facility

PERFORMANCE GUARANTEED. NOT JUST INSTALLED.

HOW WE DELIVER

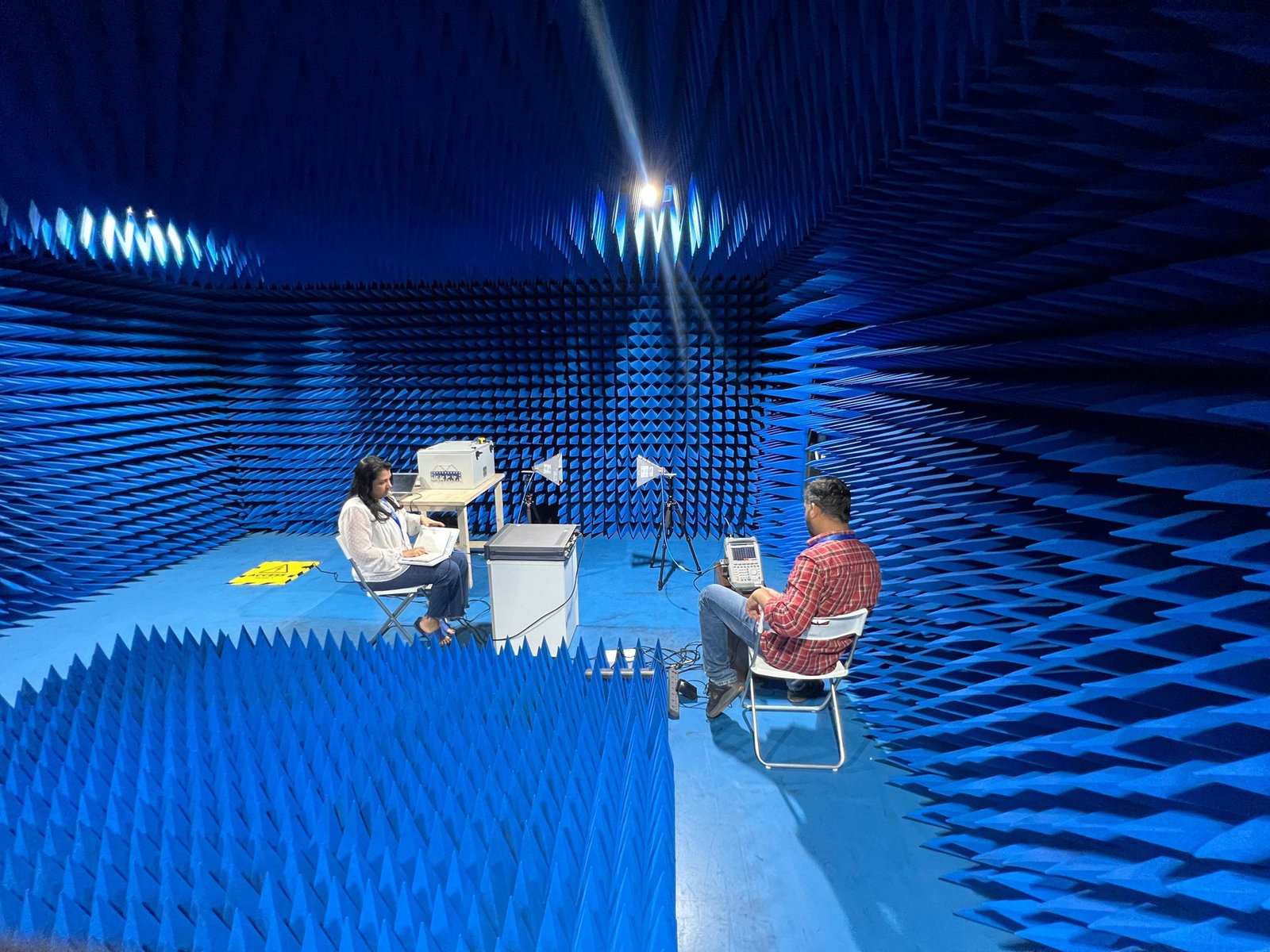

Define performance targets

Frequency range, chamber geometry, quiet zone, shielding effectiveness, field uniformity and accreditation goals.

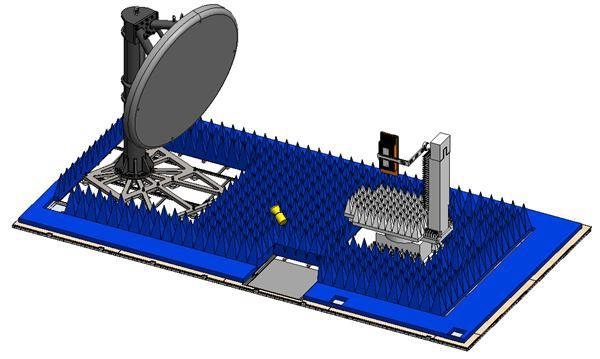

Design and performance plan

RF, mechanical and site design with a Facility Performance Test Plan setting measurable acceptance criteria.

Manufacture and install

Shielding, absorbers, positioners, filters and instrumentation built, integrated & commissioned by one team.

Validate and hand over

Every approved parameter measured and documented. Operators trained. Shortfalls resolved before handover.

WE INNOVATE. WE COMMIT. YOU EXCEL.

BUILD YOUR NEXT EMC, RF OR OTA FACILITY WITH CONFIDENCE

Speak with the Aracion engineering team about chamber specifications, OTA facilities, shielding, absorbers, instrumentation or complete turnkey laboratory planning.
