PRECISION OTA TESTING. ENGINEERED FOR NEXT- GENERATION WIRELESS SYSTEMS.
An 11.5 m compact antenna test range in Bengaluru for radiated conformance of 5G base stations and precise antenna measurement, without reliance on outdoor ranges.
OVERVIEW
ALVEX is the world’s first independent laboratory to operate this CATR setup: an ISO/IEC 17025:2017-accredited FR1 and FR3 radiated conformance range with a Keysight measurement system and PROPSIM channel emulation under one roof.

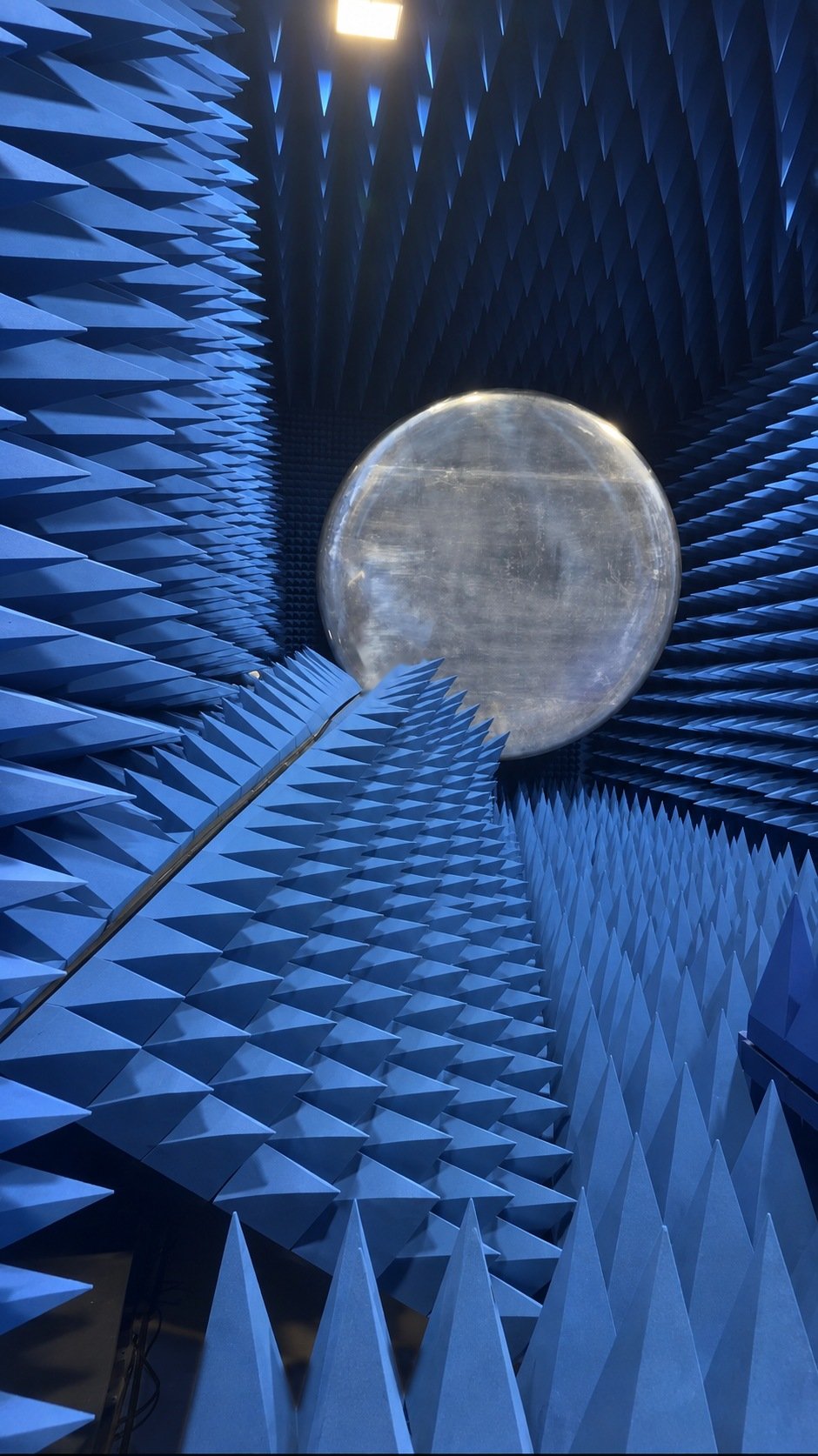

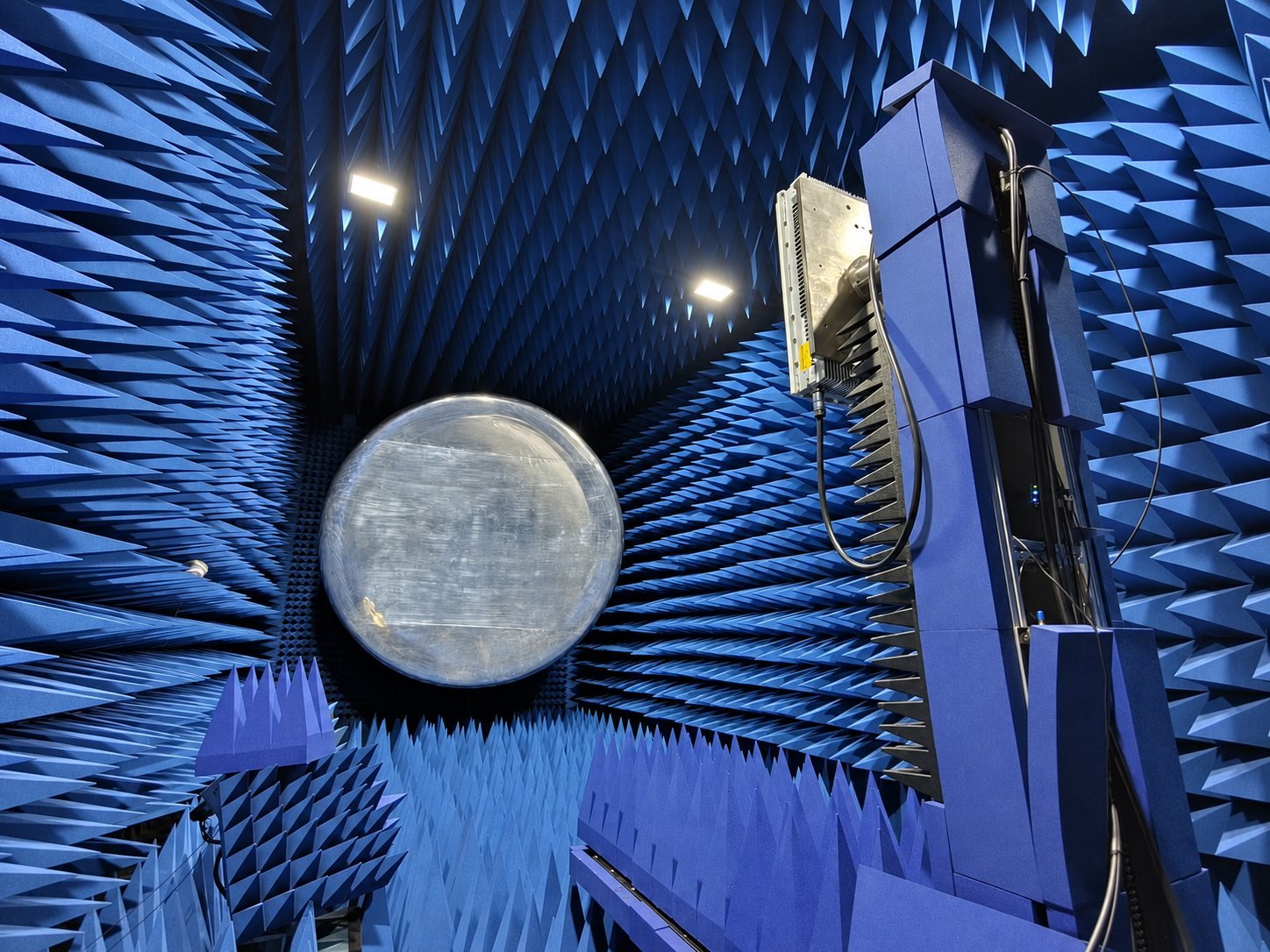

The CATR produces a uniform 1.5 m quiet zone from 1.49 GHz to 24 GHz inside an 11.5 m × 5.5 m × 5.5 m shielded chamber, using a 3.3 m offset reflector and an automated azimuth-over-elevation positioner rated to 50 kg, with a Keysight measurement system.
Radiated conformance covers base station types 1-O and 1-H, AAS OTA and AAS
hybrid to 3GPP TS 38.141-2: Chapter 6 transmitter, Chapter 7 receiver and
Chapter 8 performance. The range also supports massive MIMO radios, phased
arrays, radar and satcom antennas. Finding performance gaps here, before
deployment, saves design iterations and field failures.
ALVEX Core automation keeps campaigns repeatable and results traceable.
FACILITY SPECIFICATION
GALLERY

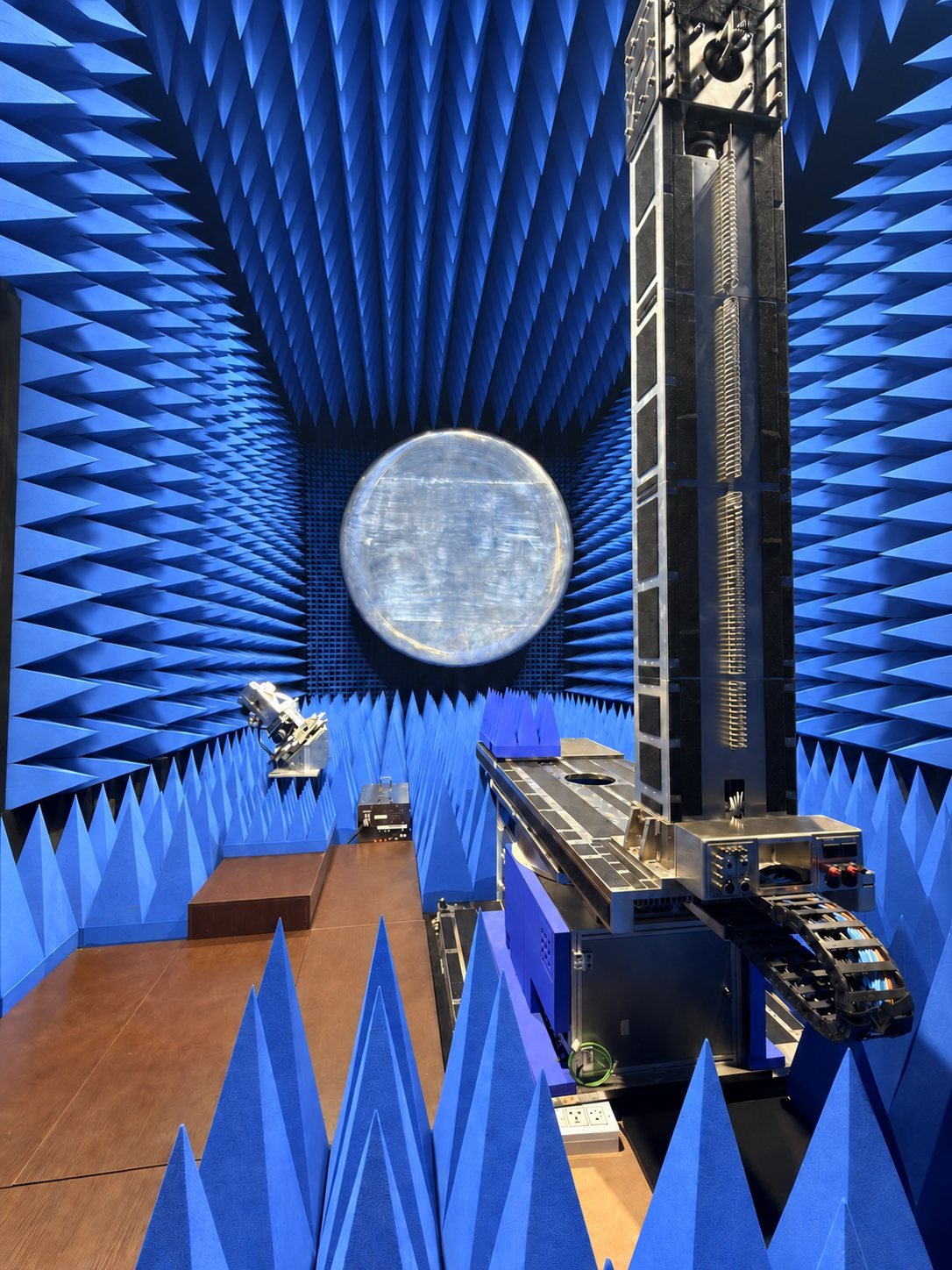

INSIDE THE RANGE
CAPABILITIES
Antenna & array measurement
• Antenna performance verification: 2D and 3D patterns, gain, directivity, beamwidth
• Beamforming and phased arrays: steering accuracy, null placement, per-beam EIRP
• Polarisation: axial ratio, tilt angle, co- and cross-polar patterns
• Base station and radar antennas: sector antennas, L/S/C/X-band apertures
Base station radiated
conformance
• Base station types 1-O and 1-H, AAS OTA and AAS hybrid
• 3GPP TS 38.141-2 Chapter 6: transmitter characteristics
• Chapter 7: receiver characteristics
• Chapter 8: performance requirements
• Passive and active measurement: pattern cuts, EIRP, TRP and spurious
Scenarios and debug
• Channel emulation: fading and mobility scenarios via PROPSIM
• MIMO throughput: multi-layer throughput under correlated fading
• Pre-compliance and debug: diagnostic campaigns ahead of certification
Automation and reporting
• Automated test execution: automation software drives sequencing and capture
• Traceable reporting: uncertainty budgets and range qualification records
